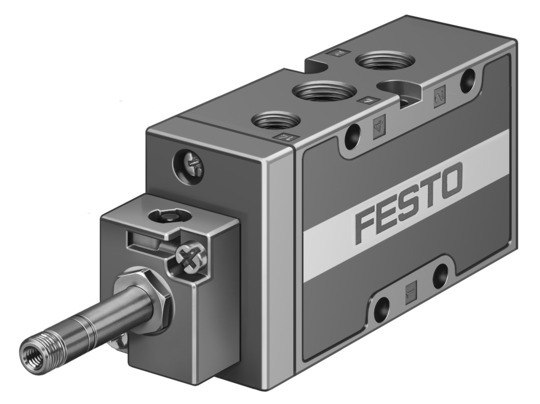

Valve function5/2-way, monostable
Type of actuationElectric
Construction width32 mm
Standard nominal flow rate (standardised to DIN 1343)1300 l/min
pneumatic working portG1/4
Operating pressure0.2 MPa ... 1 MPa
Operating pressure2 bar ... 10 bar
DesignPoppet seat
Type of resetMechanical spring
Nominal size7 mm
Grid dimension33 mm
Exhaust-air functionWith flow control option
Sealing principleSoft
Mounting positionoptional
Manual overrideNon-detenting
Type of pilotingPilot actuated
Pilot air supplyInternal
Flow directionNon-reversible
Symbol00991035
lapUnderlap
b value0.29
C value5.5 l/sbar
Max. switching frequency3 Hz
Switching time off36 ms
Switching time on12 ms
Max. positive test pulse with 0 signal2200 µs
Max. negative test pulse with 1 signal3700 µs
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-40 °C ... 60 °C
Media temperature-10 °C ... 60 °C
Ambient temperature-5 °C ... 40 °C
Product weight300 g
Electrical connectionVia F coil, to be ordered separately
Type of mountingEither: On PR rail With through-hole
Pilot exhaust port 84M5
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS-compliant
Material sealsNBR TPE-U(PU)
Material housingDie-cast aluminium
