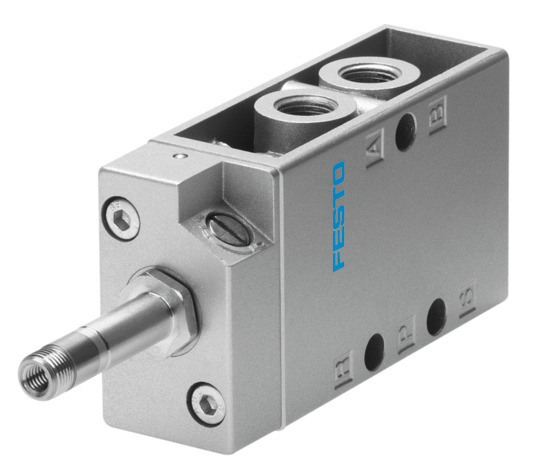

Valve function
5/2, monostable
Actuation type
Electrical
Width
26 mm
Standard nominal flow rate
500 l/min
Pneumatic working port
G1/8
Operating voltage
Via solenoid coil, to be ordered separately
Operating pressure
0.18 MPa ... 0.8 MPa
Operating pressure
1.8 bar ... 8 bar
Structural design
Plate seat
Reset method
Mechanical spring
Certification
c UL us - Recognized (OL)
Degree of protection
IP65
Nominal width
5 mm
Width dimension
27 mm
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Detenting
Type of control
Pilot-controlled
Flow direction
Non-reversible
Symbol
00991035
Underlap
no
Switching time off
36 ms
On switching time
8 ms
Max. positive test pulse with 0 signal
2200 µs
Max. negative test pulse on 1 signal
3700 µs
Coil characteristics
See solenoid coil, to be ordered separately
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
1 - Low corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Storage temperature
-20 °C ... 60 °C
Temperature of medium
-10 °C ... 60 °C
Ambient temperature
-5 °C ... 40 °C
Product weight
270 g
Electrical connection
Via F coil, to be ordered separately
Type of mounting
Optionally:
On terminal strip
With through-hole
Pilot exhaust air port 82
M5
Pneumatic connection 1
G1/8
Pneumatic connection 2
G1/8
Pneumatic connection 3
G1/8
Pneumatic connection 4
G1/8
Pneumatic connection 5
G1/8
Note on materials
RoHS-compliant
Seals material
NBR
TPE-U(PU)
Housing material
Die-cast aluminum
