Brief Introduction

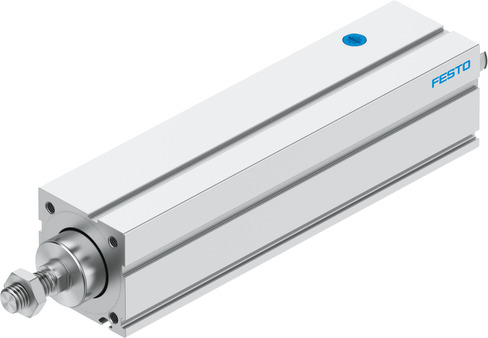

EPCC-BS-45-100-10P-A

Size45 Stroke100 mm Stroke reserve0 mm Piston rod threadM10x1.25 Reversing backlash theoretical100 µm Spindle diameter10 mm Spindle pitch10 mm/U Torsional backlash at piston rod +/-1 deg Mounting positionoptional Piston-rod endMale thread Type of motorStepper motor Servo motor Position detectionVia proximity switch DesignElectric cylinder With ball screw drive Spindle typeBall screw drive Symbol00991941 Protection against torque/guideWith plain-bearing guide Max. acceleration15 m/s² Max. rotational speed3600 rpm Max. speed0.6 m/s Max. homing speed0.01 m/s Repetition accuracy±0.02 mm Duty cycle100% Corrosion resistance class CRC0 - No corrosion stress LABS (PWIS) conformityVDMA24364 zone III Suitability for the production of Li-ion batteriesSuitable for battery production according to the Festo internal definition of the degree of severity F1A with restrictions regarding the use of Cu/Zn/Ni Cleanroom classClass 9 according to ISO 14644-1 Storage temperature-20 °C ... 60 °C Relative air humidity0 - 95% Non-condensing Degree of protectionIP40 Ambient temperature0 °C ... 60 °C Impact energy in end positions0.012 J Max. drive torque0.9 Nm Max. moment Mx0 Nm Max. moment My2.9 Nm Max. moment Mz2.9 Nm Max. radial force at drive shaft180 N Max. feed force Fx450 N Frictional torque independent of load0.16 Nm Reference value effective load, horizontal60 kg Reference value effective load, vertical30 kg Mass moment of inertia JH per metre of stroke0.0711 kgcm² Mass moment of inertia JL per kg of working load0.0253 kgcm² Mass moment of inertia JO0.0153 kgcm² Maintenance intervalLife-time lubrication Moving mass for 0 mm stroke179 g Additional moving mass per 10 mm stroke4.9 g Basic weight for 0 mm stroke555 g Additional weight per 10 mm stroke41 g Type of mountingVia female thread With accessories Note on materialsRoHS-compliant Material housingWrought aluminium alloy Smooth anodised Material piston rodHigh-alloy stainless steel Material spindle nutSteel Material spindleRolled steel
