Brief Introduction

TL-WDR5620 Easy display edition white

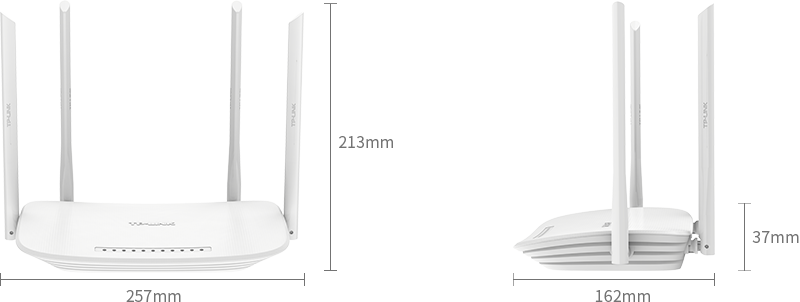

Wi-Fi IEEE 802.11a/b/g/n/ac wireless protocol Maximum wireless speed 1167Mbps (2.4GHz 300Mbps, 5GHz 867Mbps) 2×2 MIMO WMM: Priority-based data processing and forwarding Wi-Fi multi-band in one Easy to expand function Ethernet port Four 10/100Mbps adaptive WAN/LAN ports Dimensional weight Bare metal size (L×W×H): 257×162×213mm, Packing size (L×W×H): 386.5×299.5×69.5mm Bare weight: 0.268kg (single, excluding accessories and packaging) Weight: 0.61kg (single, including accessories and packaging) Antenna type External omnidirectional antennas: 2 x 2.4G antennas, 2 x 5G antennas Software Features Wireless bridging Signal conditioning Endpoint management The IP address is bound to the MAC address AP isolation Virtual servers Dynamic Domain Name Service (DDNS) DMZ host Automatic cleanup Wireless timer switch Local Online/Local Firmware/Remote Upgrade Safe WPA-PSK, WPA2-PSK wireless encryption Host network, guest network Administrator qualifications Power supply DC power supply, 9V/0.85A power adapter is distributed from the factory Packing list 1 router 1 power adapter 1 quick installation guide 1 parameter record sticker
