Brief Introduction

TL-WDR7661 Gigabit

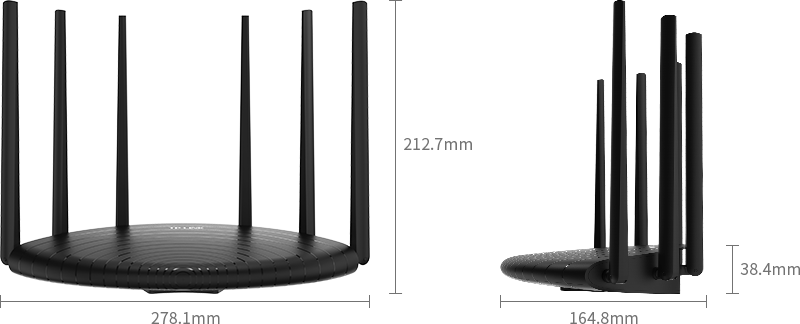

Wi-Fi IEEE 802.11a/b/g/n/ac wireless protocol Maximum wireless speed 1900Mbps (2.4GHz 600Mbps, 5GHz 1300Mbps) Beamforming 3×3 MU-MIMO WMM: Priority-based data processing and forwarding Wi-Fi multi-band in one Ethernet port 3 x 10/100/1000Mbps adaptive LAN port 10/100/1000Mbps adaptive WAN port Dimensional weight Bare metal size (L×W×H): 278.1×164.8×212.7mm, Packing size (length×width×height): 407.5×311.5×89.5mm Bare weight: 0.475kg (single, excluding accessories and packaging) Weight: 0.895kg (single unit, including accessories and packaging) Antenna type External omnidirectional antennas: 3 x 2.4G antennas, 3 x 5G antennas Software Features Wireless bridging Signal conditioning Endpoint management The IP address is bound to the MAC address AP isolation Virtual servers Dynamic Domain Name Service (DDNS) DMZ host Automatic cleanup Wireless timer switch Local Online/Local Firmware/Remote Upgrade Safe WPA-PSK, WPA2-PSK wireless encryption Host network, guest network Administrator qualifications Power supply DC power supply, factory delivery 12V/1A power adapter Packing list 1 router DC power supply, factory delivery 12V/1A power adapter 1 network cable (1 meter). 1 quick installation guide 1 parameter record sticker
